How do I format the x-axis time labels in visualizations?

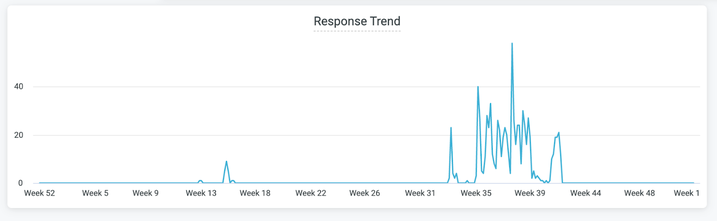

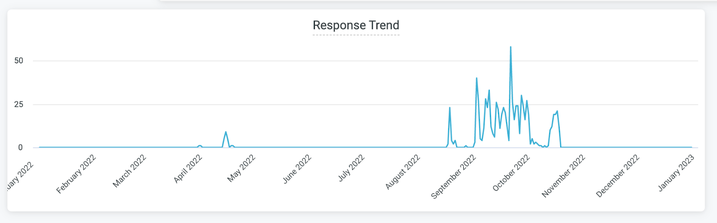

When creating visualization that show data over time, such as the Line visualization, you can format the date field on the x-axis. For example, the same chart is shown below with two different date formats applied on the x-axis ("Week %W" and "%B %Y") .

Detailed steps

1. Open the dashboard in edit mode.
2. In the visualization you want to format, select Tile Actions > Edit.
3. On the top right side of the Visualization panel, click Edit.
4. Click the X tab.

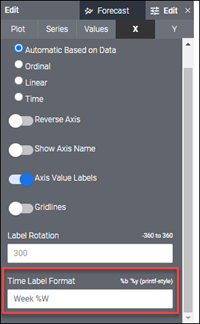

5. In the Time Label Format text box, enter the format to use.

   For information on the formats you can use, see Time formatting for visualizations.
