Funnel visualization

Lisa Wong
Updated

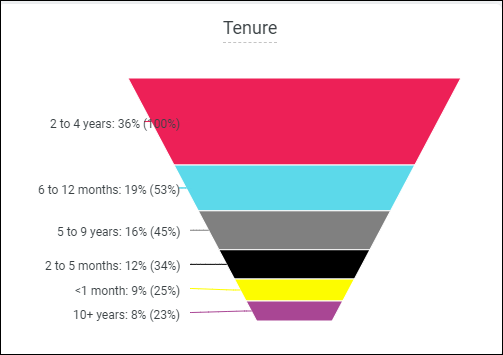

Use this visualization type to display sequential stages.

The following options are available under each tab.

Tip: Customize and edit the selected visualization type in the Edit Tile dialog box by clicking Edit.

Axes

Table 1. Colors section
Options Description
Label Left Axis Enables a text box to add a label to the left axis.
Label Right Axis Enables a text box to add a label to the right axis.

Bars

Options Description
Collection Select from a group of pre-selected colors.
Palette

Choose one of several existing palettes or create a custom palette in the Custom tab. The following options are available:

  • Type in a hex code or click Edit All to edit all hex codes at once.
  • Click the Color Wheel button and click into the color wheel to select a color.
  • The color's brightness can be adjusted with the slider at the bottom.
  • Click the Add or Remove buttons to add or remove more colors in the color range.
Note:
  • Minimum number of colors in a palette is two.
  • Maximum number of colors in a palette is five.
Reverse colors Reverses the palette and applies colors at the:
  • Left end of palette to higher values in the data range.
  • Right end of the palette to lower values in the data range.
The options change depending on the type of palette selected:
  • Sequential or Diverging palettes: Each bar is colored on the scale of the palette in reverse. This starts with the color at the right end of the palette moving left.
  • Categorical palettes: Colors are applied to each bar in reverse order, starting with the last color in the palette.
Smoothed Bars Connects the outer edge of each bar in the funnel chart with the bar above and below it.
Orientation Specify whether the data is drawn from table rows or columns. The Automatic option chooses the data based on where there is the most data.
Label Scale Specify the size of the labels on each side of the chart. The following options can be entered:
  • 0 for the minimum size.
  • 1 for the maximum size.
  • A number between 0 and 1 to indicate a percentage between.

Labels

Options Description
Label Position Choose where data labels appear on the chart. The following options are available:
  • Left: Labels are on the left side of the chart.
  • Inline: Labels are in the center, inside the chart bars.
  • Right: Labels are on the right side of the chart.
  • Hidden: Labels are not shown.
Percentage Type A percentage value is added for each bar. This is determined by comparing the bar's value to the largest value in the chart or comparing the previous bar in the chart.
Percentage Position Choose where bar percentage appears on the chart. The following options are available:
  • Left: Percentages are on the left side of the chart.
  • Inline: Percentages are in the center, inside the chart bars.
  • Right: Percentages are on the right side of the chart.
  • Hidden: Percentages are not shown.
Value Position Choose where data values appear on the chart. The following options are available:
  • Left: Values are on the left side of the chart.
  • Inline: Values are in the center, inside the chart bars.
  • Right: Values are on the right side of the chart.
  • Hidden: Values are not shown.
Color Label Set a custom color for the label or percentage.
Note: Inline labels will appear in the color chosen and labels on the sides of the chart will appear 40% darker than the selected color.
